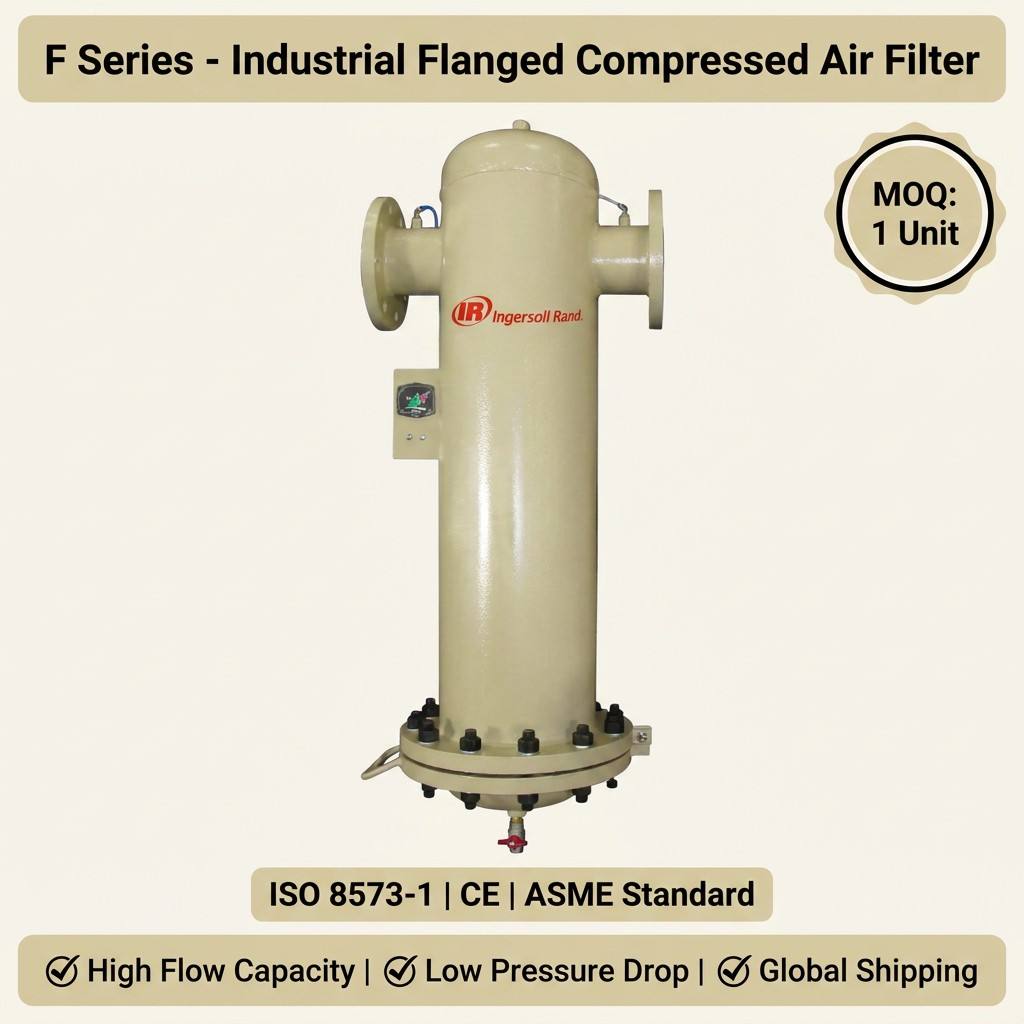

Ingersoll Rand F Series Flanged Compressed Air Filter

Superior Filtration Grades (G/D/H/A):G (General Purpose): 1 micron, removes water and oil aerosols with >95% efficiency.
D (Dust Removal): 1 micron, removes dry particulate matter.
H (High Efficiency): 0.01 micron / 0.01 ppm residual oil, removes ultra-fine particles and aerosols.
A (Ultra High Efficiency): 0.01 micron / 0.001 ppm residual oil, providing medical-grade precision oil removal.
Robust Flanged Build: Features standard 14 barg flanged connections (up to 18 barg for high-pressure versions), ensuring safe and reliable operation in heavy-duty environments.
Advanced Element Design: The filter elements use a proprietary "deep-bed" media with stainless steel supports, providing exceptional dirt-holding capacity and resistance to pressure surges.
Compact & Modular Layout: Innovative housing design allows for multi-unit serial connection, saving valuable installation space and simplifying maintenance access.
Intelligent Monitoring & Safety: Standard configuration includes a high-visibility differential pressure gauge and an automatic drain valve to ensure constant system efficiency.
High Thermal Stability: Capable of operating effectively in air temperatures up to 80°C, making it suitable for systems with high-temperature discharge.
Industrial Protection: The pressure vessels are epoxy-coated inside and out for maximum corrosion resistance and longevity.
