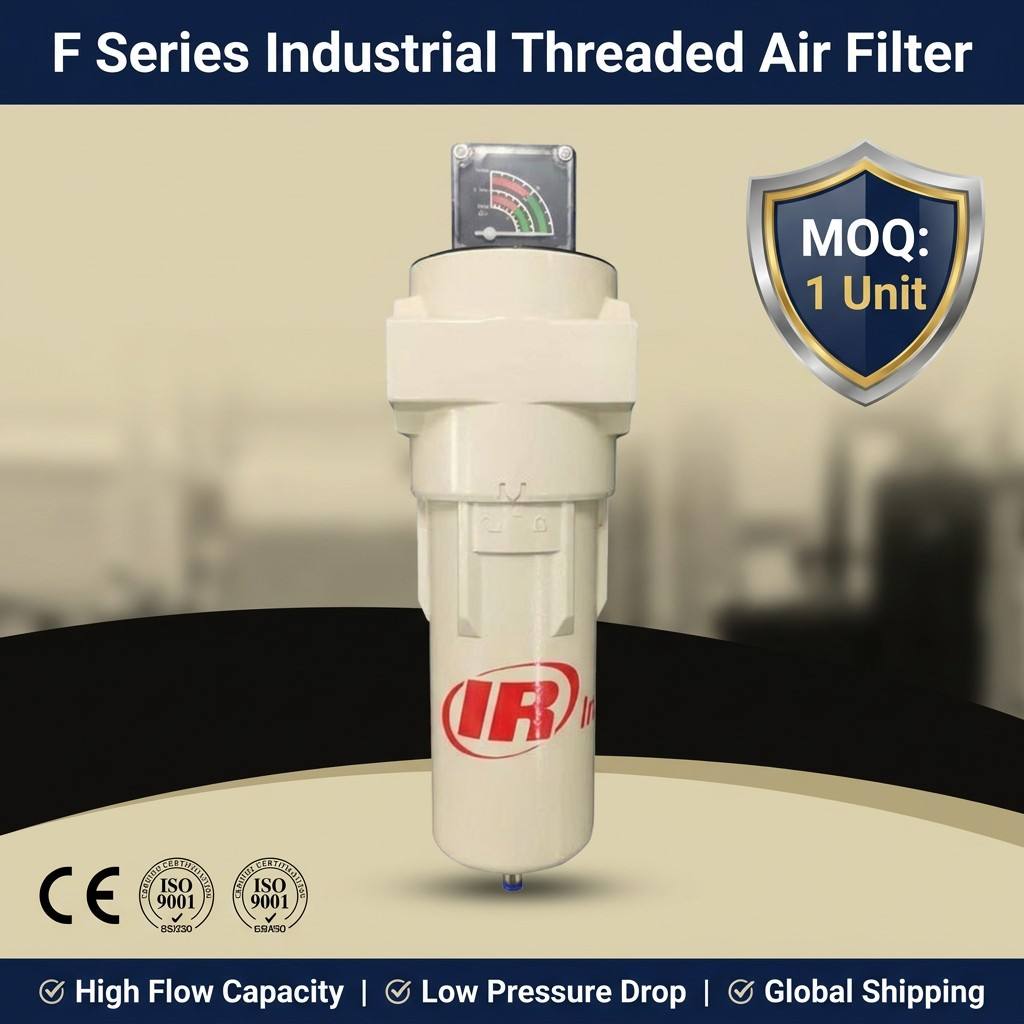

Ingersoll Rand F Series Threaded Compressed Air Filter

Precision Filtration Grades (G/D/H/A):G (General Purpose): 1 micron, removes liquid water and oil aerosols (>95% efficiency).
D (Dust Removal): 1 micron, designed for dry particulate filtration.
H (High Efficiency): 0.01 micron / 0.01 ppm residual oil, removes ultra-fine aerosols.
A (Ultra High Efficiency): 0.01 micron / 0.001 ppm residual oil, medical-grade oil removal.
Compact & Modular Design: The innovative housing allows units to be connected in series without complex piping, significantly reducing the installation footprint and maintenance space.
Ergonomic Maintenance: Designed for the user, the filter bowl allows for quick, tool-free element changes, ensuring minimal system downtime.
Rugged Construction: Rated for operating pressures up to 16 bar (standard) or 20 bar (stainless steel version), with a wide operating temperature range up to 80°C.
Advanced Element Technology: Features stainless steel internal and external support meshes for high structural integrity and consistent filtration performance under pressure surges.
Integrated Drainage: Comes standard with internal float drains (F42-F444 models) or high-performance electronic drains (F540-F2100 models) for reliable condensate removal.
High Chemical Compatibility: Premium drainage layer materials provide excellent chemical resistance and enhanced drainage performance.
